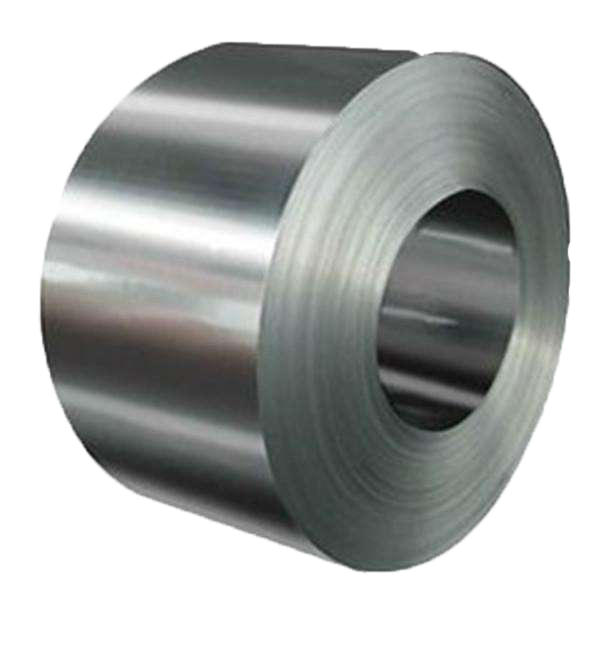

高精度不锈钢带

18/10/15 14:03:10

厚度公差表
Thickness Tolerance
厚度公差Thickness GB/T3280-2007 JIS G 4305-2005(ET) ASTM A480M-07 GT
W＜125 W≥125 W≥250 W＜160 W≥160 W≥250 W≥400 5＜W≤152 W＞152 W＞305 W＜160 W≥160 W≥250 W≥400
W＜250 W≤600 W＜250 W＜400 W≤600 W≤305 W≤600 W＜250 W＜400 W≤600
T＜0.10 ±0.06*T ±0.10*T ±0.10*T ±0.010 ±0.020 - - ±0.10*T ±0.10*T ±0.10*T ±0.005 ±0.005 ±0.005 ±0.005
0.1≤T＜0.16 ±0.008 ±0.012 ±0.015 ±0.015 ±0.020 - - ±0.10*T ±0.10*T ±0.10*T ±0.008 ±0.008 ±0.008 ±0.008
0.16≤T＜0.25 ±0.012 ±0.015 ±0.020 ±0.020 ±0.025 ±0.025 ±0.030 ±0.015 ±0.020 ±0.025 ±0.008 ±0.008 ±0.010 ±0.010
0.25≤T＜0.40 ±0.015 ±0.020 ±0.025 ±0.025 ±0.030 ±0.035 ±0.035 ±0.025 ±0.040 ±0.040 ±0.010 ±0.010 ±0.015 ±0.015
0.40≤T＜0.60 ±0.025 ±0.025 ±0.030 ±0.035 ±0.040 ±0.040 ±0.040 ±0.025 ±0.040 ±0.040 ±0.015 ±0.015 ±0.020 ±0.020
0.60≤T＜0.80 ±0.025 ±0.030 ±0.035 ±0.040 ±0.045 ±0.045 ±0.045 ±0.040 ±0.040 ±0.050 ±0.020 ±0.020 ±0.025 ±0.025
宽度公差表
Width Tolerance
宽度公差Width Tolerance GB/T3280-2007 JIS G 4305-2005(ET) ASTM A480M-07 GT
W≤40 W＞40 W＞125 W＞250 W＜160 W≥160 W≥250 W≥400 W≤40 W＞40 W＞150 W＞305 W＜160 W≥160 W≥250 W≥400
W≤125 W≤250 W≤600 W＜250 W＜400 W≤600 W≤40 W≤305 W≤600 W＜250 W＜400 W＜600
0.05≤T＜0.25 ﹢0.13 ﹢0.15 ﹢0.20 ﹢0.50 ﹢0.15 ﹢0.15 ﹢0.30 ﹢0.30 ﹢0.085 ﹢0.01 ﹢0.125 ﹢0.50 ﹢0.10 ﹢0.15 ﹢0.20 ﹢0.25
0.25≤T＜0.5 ﹢0.15 ﹢0.20 ﹢0.22 ﹢0.50 ﹢0.15 ﹢0.15 ﹢0.30 ﹢0.30 ﹢0.125 ﹢0.125 ﹢0.125 ﹢0.50 ﹢0.15 ﹢0.15 ﹢0.25 ﹢0.30
0.5≤T＜0.8 ﹢0.20 ﹢0.22 ﹢0.22 ﹢0.60 ﹢0.15 ﹢0.15 ﹢0.30 ﹢0.30 ﹢0.125 ﹢0.125 ﹢0.125 ﹢0.50 ﹢0.15 ﹢0.15 ﹢0.30 ﹢0.30

产品范围                                         Spcificationg
化学成分                                             Chemical Composition
钢种        Grades 标准Standards C Mn Si P S Cr Ni Mo N Ti
301 SUS 301 JIS G 4305 ≤0.15 ≤2.00 ≤1.00 ≤0.045 ≤0.030 16.00-18.00 6.00-8.00 - - -
301 ASTM A240 ≤0.15 ≤2.00 ≤1.00 ≤0.045 ≤0.030 16.00-18.00 6.00-8.00 - ≤0.10 -
12Cr17Ni7 GB/T 3280 ≤0.15 ≤2.00 ≤1.00 ≤0.045 ≤0.030 16.00-18.00 6.00-8.00 - ≤0.10 -
301 参考标准 0.090-0.030 1.30-1.90 0.40-0.80 0.020-0.040 0.001-0.003 16.80-17.20 6.00-6.50 - 0.03-0.06 -
304 SUS 304 JIS G 4305 ≤0.08 ≤2.00 ≤1.00 ≤0.045 ≤0.030 18.00-20.00 8.00-10.50 - - -
304 ASTM A240 ≤0.07 ≤2.00 ≤0.75 ≤0.045 ≤0.030 17.50-19.50 8.00-10.50 - ≤0.10 -
06Cr19Ni10 GB/T 3280 ≤0.08 ≤2.00 ≤0.75 ≤0.045 ≤0.030 18.00-20.00 8.00-10.50 - ≤0.10 -
304 SSPH 0.030-0.070 0.80-1.30 0.30-0.70 0.20-0.038 0.001-0.008 18.00-18.50 8.00-8.40 - 0.02-0.06 -
304L SUS 304L JIS G 4305 ≤0.3 ≤2.00 ≤1.00 ≤0.045 ≤0.030 18.00-20.00 9.00-13.00 - - -
304L ASTM A240 ≤0.3 ≤2.00 ≤0.75 ≤0.045 ≤0.030 17.50-19.50 8.00-12.00 - ≤0.10 -
022Cr19Ni12 GB/T 3280 ≤0.3 ≤2.00 ≤0.75 ≤0.045 ≤0.030 18.00-20.00 8.00-12.00 - ≤0.10 -
304L 参考标准 0.015-0.030 1.30-1.80 0.30-0.60 0.025-0.040 0.001-0.007 18.10-18.50 8.10-8.40 - 0.02-0.06 -
305 SUS 305 JIS G 4305 ≤0.12 ≤2.00 ≤1.00 ≤0.045 ≤0.030 17.00-09.00 10.50-13.00 - - -
305 ASTM A240 ≤0.12 ≤2.00 ≤0.75 ≤0.045 ≤0.030 17.00-09.00 10.50-13.00 - - -
10Cr18Ni12 GB/T 3280 ≤0.12 ≤2.00 ≤0.75 ≤0.045 ≤0.030 17.00-09.00 10.50-13.00 - - -
305 参考标准 0.016 1.19 0.46 0.033 0.001 18.24 11 - 0.04 -
316L SUS 316L JIS G 4305 ≤0.03 ≤2.00 ≤1.00 ≤0.045 ≤0.030 16.00-18.00 12.00-15.00 2.00-3.00 - -
316L ASTM A240 ≤0.03 ≤2.00 ≤0.75 ≤0.045 ≤0.030 16.00-18.00 10.00-14.00 2.00-3.00 ≤0.10 -
022Cr19Ni12Mo2 GB/T 3280 ≤0.03 ≤2.00 ≤0.75 ≤0.045 ≤0.030 16.00-18.00 10.00-14.00 2.00-3.00 ≤0.10 -
316L 参考标准 0.02-0.03 1.20-1.60 ≤0.40-0.60 0.020-0.040 0.001-0.003 16.30-16.70 10.00-10.30 2.00-3.00 - -
321 SUS 321 JIS G 4305 ≤0.08 ≤2.00 ≤1.00 ≤0.045 ≤0.030 17.00-19.00 9.00-13.00 - - ≥5*C
321 ASTM A240 ≤0.08 ≤2.00 ≤0.75 ≤0.045 ≤0.030 17.00-19.00 9.00-12.00 - ≤0.10 5*(C+N)-0.7
06Cr18Ni11Ti GB/T 3280 ≤0.08 ≤2.00 ≤0.75 ≤0.045 ≤0.030 17.00-19.00 9.00-12.00 - ≤0.10 ≥5*C
321 参考标准 0.025-0.05 1.20-1.60 0.40-0.75 0.020-0.040 0.001-0.002 17.50-17.90 9.00-9.40 - - 0.25-0.45
430 SUS 430 JIS G 4305 ≤0.12 ≤1.00 ≤0.75 ≤0.040 ≤0.030 16.00-18.00 - - - -
430 ASTM A240 ≤0.12 ≤1.00 ≤1.00 ≤0.040 ≤0.030 16.00-18.00 ≤0.75 - - -
10Cr17 GB/T 3280 ≤0.12 ≤1.00 ≤0.75 ≤0.040 ≤0.030 16.00-18.00 ≤0.75 - - -
430 参考标准 0.043 0.4 0.3 0.02 0.005 16.2 - - - -
410S SUS 410S JIS G 4305 ≤0.08 ≤1.00 ≤1.00 ≤0.040 ≤0.030 11.50-13.50 - - - -
410S ASTM A240 ≤0.08 ≤1.00 ≤1.00 ≤0.040 ≤0.030 11.50-13.50 ≤0.60 - - -
06Cr13 GB/T 3280 ≤0.08 ≤1.00 ≤1.00 ≤0.040 ≤0.030 11.50-13.50 ≤0.60 - - -
410S 参考标准 0.023-0.05 0.27-0.33 0.27-0.29 0.025-0.026 0.004-0.005 13.2 0.07 - - -
420J2 SUS 420J2 JIS G 4305 0.26-0.40 ≤1.00 ≤1.00 ≤0.040 ≤0.030 12.00-14.00 - - - -
30Cr13 GB/T 3280 0.26-0.40 ≤1.00 ≤1.00 ≤0.040 ≤0.030 12.00-14.00 - - - -
420J2 参考标准 0.3 0.5 0.5 0.022 0.002 13.2 - - - -

软态材料机械性能                              Mechanical Properties for BA/BD
钢种                         Grades 屈服播度           YS (Mpa) 抗拉强度         TS (Mpa) 延伸率A50 Elongation (%) 硬度            Hardness (HV)
奧氏体                            Austenite 301 SUS 301 ≥205 ≥520 ≥40 ≤218
SSPH 301 275-350 700-980 45-60 180-215
304 SUS 304 ≥205 ≥520 ≥40 ≤200
SSPH 304 250-320 610-750 48-70 165-185
304L SUS 304L ≥175 ≥480 ≥40 ≤200
SSPH 304L 245-330 600-760 50-60 ≤190
305 SUS 305 ≥175 ≥480 ≥40 ≤200
SSPH 305 240-280 560-610 46-58 148-170
316L SUS 316L ≥175 ≥480 ≥40 ≤200
SSPH 316L 250-350 590-680 40-65 145-175
321 SUS 321 ≥250 ≥520 ≥40 ≤200
SSPH 321 240-340 580-650 50-70 150-175
铁素体       Ferrite 409L SUH409L ≥175 ≥360 ≥25 ≤175
SSPH 409L 210-260 ≥80-450 ≥25-38 130-160
430 SUS 430 ≥205 ≥420 ≥22 ≤200
SSPH 430 280-450 450-580 25-38 135-170
430J1L SUS 430J1L ≥205 ≥390 ≥22 ≤200
SSPH430J1L 250-310 410-470 25-38 135-1708
马氏体                         Martensite 410 SUS 410 ≥205 ≥440 ≥20 ≤20
SSPH 410 230 -300 440-490 23-38 130-160
410S SUS410S ≥205 ≥410 ≥20 ≤200
SSPH 230-320 480-520 23-32 150-175
420J2 SUS 420J2 ≥225 ≥540 ≥18 ≤247
SSPH 420J2 330-400 560-650 18-30 170-230
硬态材料机械性能                              Mechanical Properties for TR
钢种                         Grades 状态         Symbol 屈服强度           YS (Mpa) 抗拉强度         TS (Mpa) 延伸率A50 Elongation (%) 硬度            Hardness (HV)
301 1/4H ≥510 ≥860 ≥25 250-310
1/2H ≥510 ≥930 ≥10 310-370
3/4H ≥745 ≥1130 ≥5 370-430
FH ≥1030 ≥1320 - 430-490
EH ≥1275 ≥ 1570 - 490-530
SEH ≥1450 ≥ 1740 - ≥530
304 1/4H ≥450 ≥700 ≥20 220-250
1/2H ≥470 ≥780 ≥6 250-310
3/4H ≥665 ≥930 ≥3 310-370
FH ≥880 ≥1130 - ≥370
430 1/4H ≥500 ≥550 ≥5 160-200
1/2H ≥600 ≥650 ≥3 200-240
3/4H ≥680 ≥750 ≥2 240-280
FH ≥800 ≥850 ≥1 ≥280
